Nyquist E7000 IP-Based Paging System
E7000 Series IP-Based Communications System for safer, better-managed schools
The E7000 Series is a software-based state-of-the-art IP-based paging and intercom solution that leverages the latest digital, mobile and software technologies to address today’s educational environments, security challenges and mobile lifestyles.
The Nyquist E7000 ver. 10.0 Software Release represents a significant enrichment of Bogen’s award-winning solution, adding new features and enhancements to an already robust platform with improved capabilities in communication, safety, and security.
Introducing Release 10.0
- NWS Alerts: New interface provides simplified mechanism for creating, configuring, and manipulating Routines to handle NWS alerts utilizing latitude and longitude configurations providing more accurate location information.
- Debian 12 System OS Upgrade: Allowing security-conscious customers to keep System Controller OS up to date with security patches.
- Secure SIP TLS and SRTP: Securing the audio between all Nyquist Appliances and most third-party hardware.
- API v2: This evolution API adds support inbound POSTs with JSON files from 3rd party systems. This allows images and audio to be passed to Nyquist.
- Multiple NTP servers: Allow customers to configure use of more than one NTP server.
What's the sound of your school?
Play music at your education facility with Bogen. Choose your ideal sound from more than 500 curated stations or import your playlists from your favorite music services, including Spotify, Apple Music, Amazon Music, and more.
- Mix stations
- Schedule stations
- Program custom messages
- Control content across locations
Find out more by visiting: Play Music at Your Business with Bogen | SoundMachine or download the SoundMachine flyer, HERE.
New ES Dealer Exclusive!
The preconfigured version of our award-winning Nyquist communications platform, designed to enhance K-12 School Campus Communications.
The full-featured Nyquist E7000MCR is a preassembled Nyquist E7000 system that offers ES Dealers a simplified installation and configuration process. Able to leverage existing facility wiring, 25-Volt speakers and call switches, this feature-rich, pre-rack-mounted solution provides a quick and easy migration path for legacy paging and intercom systems, while delivering the same powerful feature set found in the core E7000 system. E7000MCR is also easy to configure utilizing the browser-based setup wizard on the laptop PC included with the system. The Nyquist E7000MCR is designed to operate as a primarily self-contained system, as it does not impose upon the customer’s network or IT department.
E7000 Highlights
- Easy to install, expand and use
- Nyquist System Controller (NQ-SYSCTRL) pre-loaded with the OS and E7000 application software
- Wizard-based System Setup and Configuration via the NQ-SYSCTRL
- Accessible – administrators, technicians, and other key users can access the system 24/7 on web-enabled devices – desktop or mobile – anywhere in the connected world*
- Scalable – easily add features, stations, and facilities with virtually unlimited scalability
- Compatible with legacy intercom infrastructure, including re-use of existing analog speakers, call switches and cabling (with use of the Analog Station Bridge appliance)
- SIP device and SIP trunk support (IP-PBX, VoIP phones, and VoIP speakers)
- Available integrations with PBXs, security systems, access control systems, time systems, and third-party PA systems
- Emergency Classroom Check-In allows staff to report their check-in status for their assigned classrooms or areas during an emergency using any intercom call switch or Nyquist VoIP phone
- NQ-GA10PV-based combo Clock / Messaging Display allows different priority messages to be displayed on monitors connected to NQ-GA10PVs in a selected zone, multiple zones, or to specific individual GA10PV stations
- User-Definable Routines is a powerful new feature that helps schools address: Lockdowns, Severe Weather Events, Fire Drills, Evacuation Procedures, Automated Notifications, and much more
- Map-based paging and intercom user interface with hierarchical drill-down views
- Live, pre-recorded and text-to-speech announcement options**
- Station and appliance supervision with email and dashboard alerts
- Call monitoring and recording capability
- Feature-rich audio management and distribution
- Networked audio distribution supporting multiple simultaneous streams to different zones
- Easy, intuitive song and playlist management (local and streaming sources)
- Integrated airable Internet Radio program source supports unlimited streams with easy navigation of the extensive catalog by Genre, Language, Location, Quality, Popularity and Title/Artist search
- Integrated SoundMachine subscription-based premium streaming music service provides access to professionally curated stations that can be mixed to create the perfect audio atmosphere for any environment
- Separate zone volume controls for paging versus audio distribution
- Creating and managing multiple bell/event schedules is simple and intuitive
- Ability to schedule recurring announcements
- Scheduled Audio distribution from any source including Internet Radio, SoundMachine, playlists, or Nyquist appliances with line-inputs
- Nyquist 2-Ch. and 4-Ch. Networked Audio Amplifier support available with six different power modules (NQ-A2060/2120/2300, and NQ-A4060/4120/4300)
- Pro-Audio Digital Signal Processing (DSP) embedded in all Nyquist Networked Amplifiers and the NQ-P0100 Matrix Mixer Pre-Amp
- Ambient Noise Sensing monitors ambient noise and automatically adjusts page announcement and/or background music volume to maintain intelligibility (requires the use of NQ-GA10P module)
- Page Stacking/Queuing software provides increased flexibility and versatility over legacy dedicated hardware-based multi-channel page stacker/feedback eliminators
- Record pages to queues from either the NQ-T1100 Admin phone menu button, Admin Web Interface, or via manual dialing
- Pink noise and white noise to assist with setting-up paging zone volume
*When supported by the facility’s infrastructure. With iOS devices, the dashboard is not available but all other features are accessible and operational via the menu.
**Text-to-speech requires an additional license
Virtually Unlimited Scalability
E7000’s software can expand as the user’s needs expand. The system can accommodate an infinite number of stations and facilities.
Easy and Economical to Install

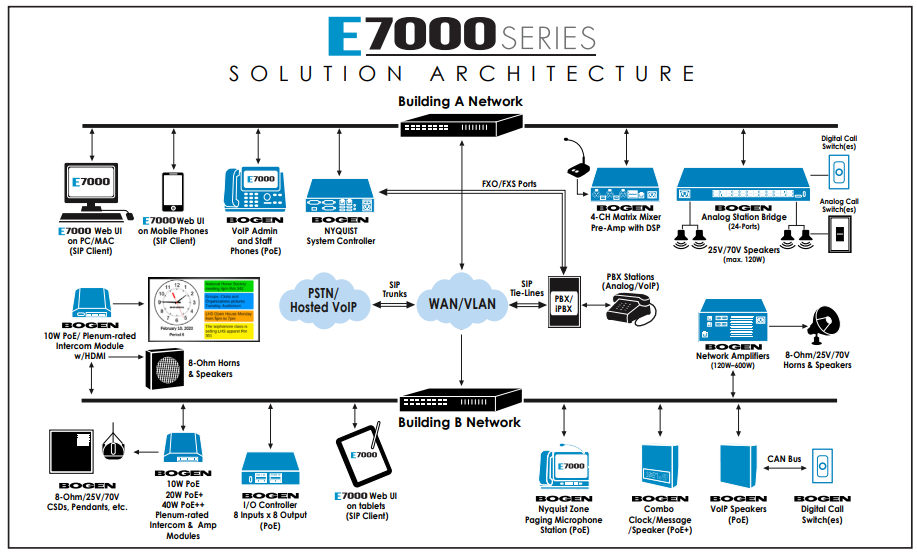

E7000 integrates with the facility’s existing cabling. The Analog Station Bridge appliance leverages existing analog speakers and call switches. Many E7000 endpoint appliances are PoE devices. With E7000 there are no bulky racks to build, simply install the E7000 server software then plug in the endpoint devices and appliances. All E7000 appliances are auto discovered by the server to facilitate fast and easy system set up.
Easy Graphical User Interface (GUI)

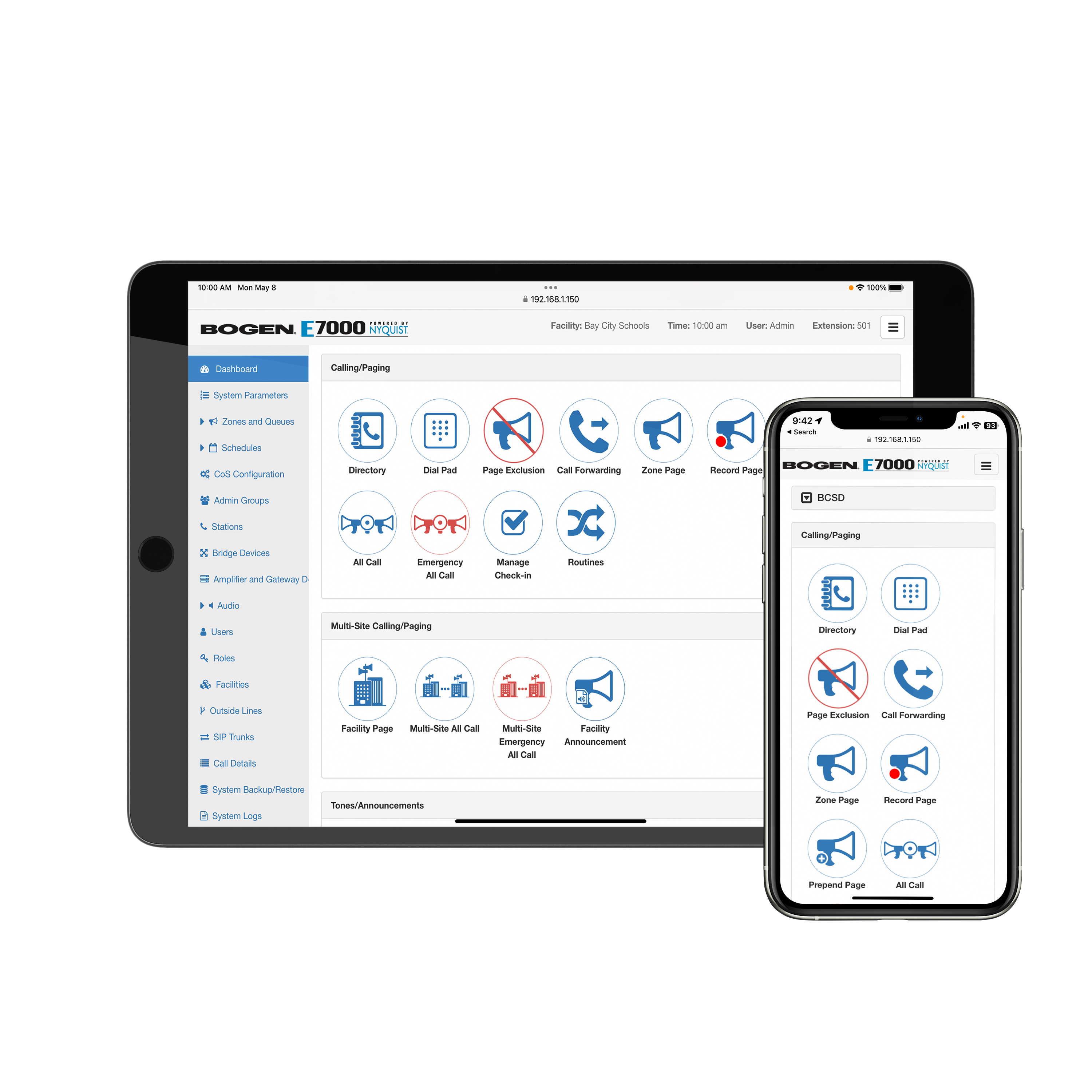

Administrators, educators, and support staff are going to love E7000! Users interface with the system either through E7000 VoIP Admin or Staff phones, or via a browser-based GUI (Fig.1) on PCs, smart phones and tablets, allowing users to access the system any time of day no matter where they are in the connected world.
The core principle of E7000’s user interface is simplicity. Its functions and design are shaped by the needs of the user to reduce distractions and improve operator response time and accuracy. Form follows function, resulting in an interface that is functional, intuitive, and aesthetically pleasing.
The system’s GUI allows people with a broad spectrum of technical proficiencies and experience levels to use the system. Large and clear buttons, along with simple and clear text makes E7000 easy to use even on touch screen and mobile devices. Embedded tooltips and guides aid in user self-sufficiency. Technical administrators can assign individual users permissions appropriate to their role and proficiency.
E7000 Capabilities
- Mobile Accessibility – Instantaneous accessibility to campus and district-wide communications is vital for the safety and security of students and staff. E7000 allows administrators to access the system 24/7 from anywhere in the connected world, even with mobile devices. E7000 can help with features such as call monitoring, call recording and playback, emergency paging with pre-programmed announcements and much more.
- Security device integration – E7000 interfaces with select third-party security devices such as locks, alarm systems, and sensors via the programmable I/O Controller appliance.
- State-of-the-art Paging and Intercom – Paging and intercom functions are brought to new levels of sophistication and control, including text-to-speech capability and a map-based user interface with hierarchical drill-down views. Users no longer need to look up or remember a facility’s or station’s number in order to communicate with any area or station on the campus.
- Station & Appliance Supervision – The system automatically alerts administrators via email and dashboard pop-up notice if stations and/or appliances go off-line
- Unmatched Audio Capability – Bogen’s 85-year history of audio excellence is evident in the range and quality of audio features.
- Unlimited Scheduling – Administrators can take full control of scheduling functions, including importing holiday schedules, via E7000’s powerful web-based user interface.
- Convenient and Powerful Configuration and Maintenance – IT and facilities technicians can remotely access the E7000’s GUI wherever they are to program, diagnose and control the system.
- Telephony – Integrated and Elevated – E7000 easily integrates with virtually any VoIP or analog phone system to create a seamless communication platform.
