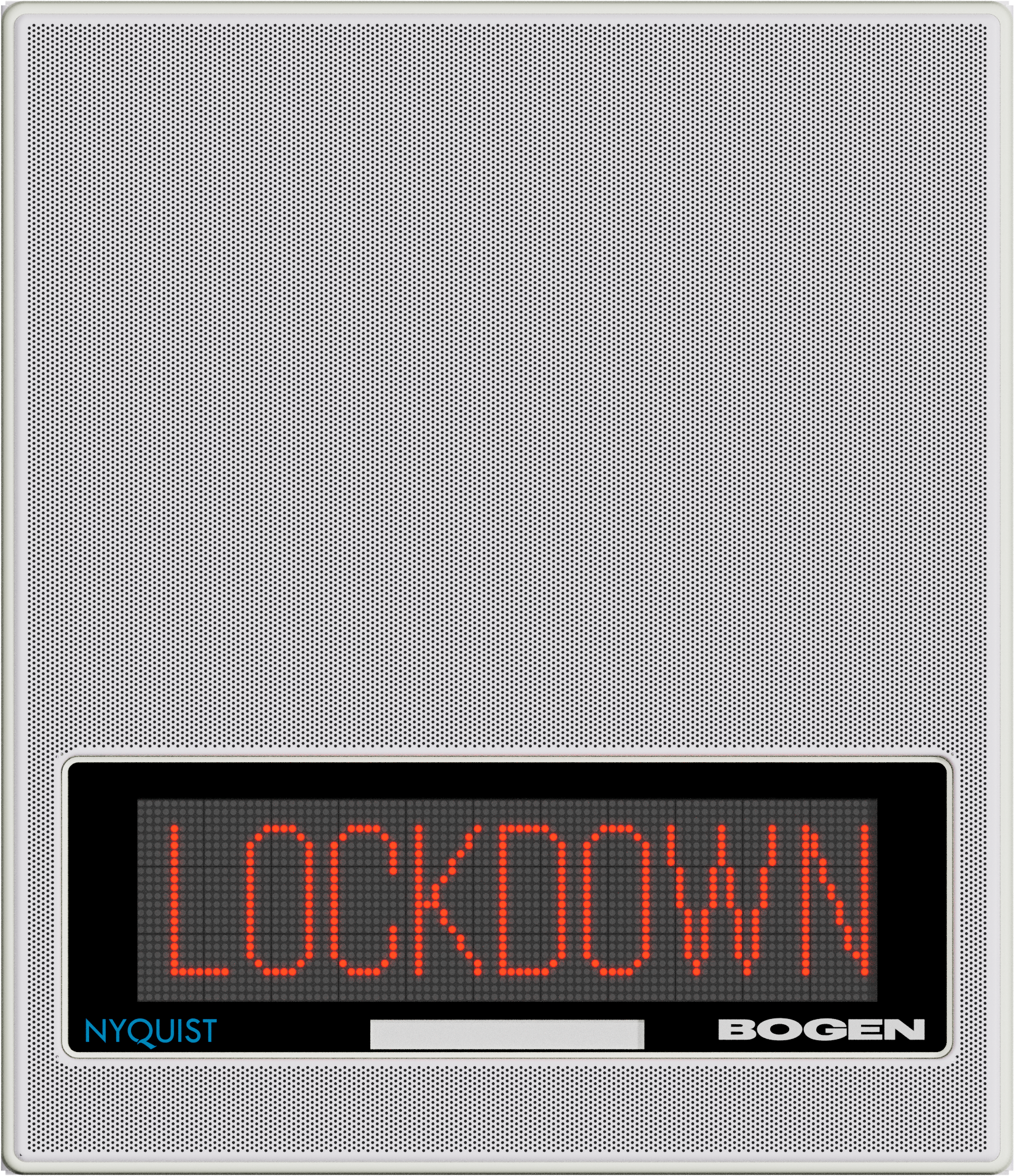

Nyquist VoIP Wall Baffle Combo Speaker w/ Integrated LED Text Display & LED Flasher NQ-S1810WBC

Model NQ-S1810WBC

Coming soon! The NQ-S1810WBC is expected to be available 3Q'24

The Bogen Nyquist NQ-S1810WBC VoIP wall baffle combo speaker unit provides the same superior features as the NQ-S1810WT-G3 with the addition of a red LED messaging display and programmable flasher. There is no need for external amplifiers, traditional intercom wiring, or transformer taps to manually set or adjust. Connect the speakers via Cat5 to a PoE capable network switch (or add a PoE injector for a non-PoE switch), add the station into the system and it is ready to operate. The message display can show a clock with date and time (seconds are optional), or user-programmable messaging for standard or emergency announcements. The flasher is completely programmable for color, duty cycle, and duration to differentiate alert types, and can be triggered independent of the message display.

As one would expect from Bogen, the HD audio quality is superb, with excellent incoming and outgoing intelligibility. Many two-way speakers use the speakers itself as the microphone, resulting in poor talkback audio quality. The Nyquist Series VoIP Wall Baffle speakers use a separate high-performance MEMS microphone to achieve superior talkback audio.

Key Benefits

  • LED Message Display to visually inform students and personnel of the date and time, or scroll emergency or standard messages
  • Programmable messages for predefined or manually-input messages, with longer ones scrolled across the display for a defined period of time
  • Programmable LED flasher for gaining audience attention; use different colors for different types of alerts (e.g. fire, lockdown, weather, etc.) and triggers
  • Routines/Routines API functionality for displaying messages, alerts, and flasher via predefined Routines triggered through system events or API calls



Features:

  • 10/100 Ethernet connection
  • PoE Type-1 - IEEE 802.3af compliant
  • DHCP deployment for easy installation
  • Pre-assembled for easy installation
  • 10W integrated audio amplifier
  • Reset button for restoring factory settings
  • Form-C SPDT type 2A @ 30V DC dry contact relay output
  • DSP-based noise rejection and voice bandwidth optimization
  • MEMS microphone for superior talkback audio
  • CAN Bus 2.0 Interface connects to Nyquist Digital Call Switches (NQ-E7020-G2)
