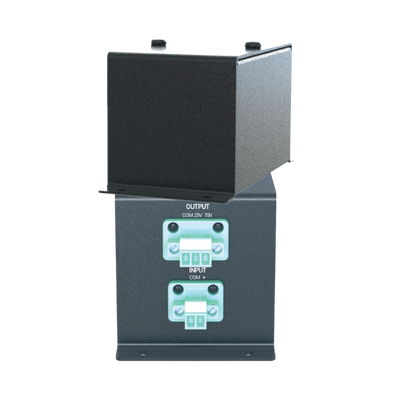

Nyquist Distributed Audio Transformer NQ-GAXMR1

The NQ-GAXMR1 Distributed Audio Transformer provides impedance and voltage matching and is primarily designed for use with Bogen’s low-impedance (4-ohm/8-ohm), PoE-based, integrated amplifier modules (NQ-GA10P, NQ-GA10PV, or NQ-GA20P2) when the user needs to connect to one or more 25V or 70V transformer tapped speakers. While the NQ-GAXMR1 can also be used with other low power, low-impedance, Class D amplifiers, it's very important to note that any such amplifier must be capable of setting a high-pass (low-cut) filter at a minimum of 50Hz to prevent distortion that can occur due to transformer saturation.

NOTE: The NQ-GAXMR1 cannot be used for intercom applications with devices like the NQ-GA10P or NQ-GA10PV.

  • 40-watt maximum load capacity
  • 1 two-pin pluggable Phoenix style input connector
  • 1 three-pin pluggable Phoenix style output connector
  • 25V and 70V audio outputs (only one output can be used at a time)
  • Integrated mounting flanges (4 thread forming M4 x 6mm screws included)
  • Listed to UL Standard EN62368-1:2014 for U.S. & Canada
  • Size: 2.559” x 4.810” x 2.5”
  • Weight: 2.2 lbs
  • Five (5) year limited warranty
