Easy Design Horn Loudspeakers

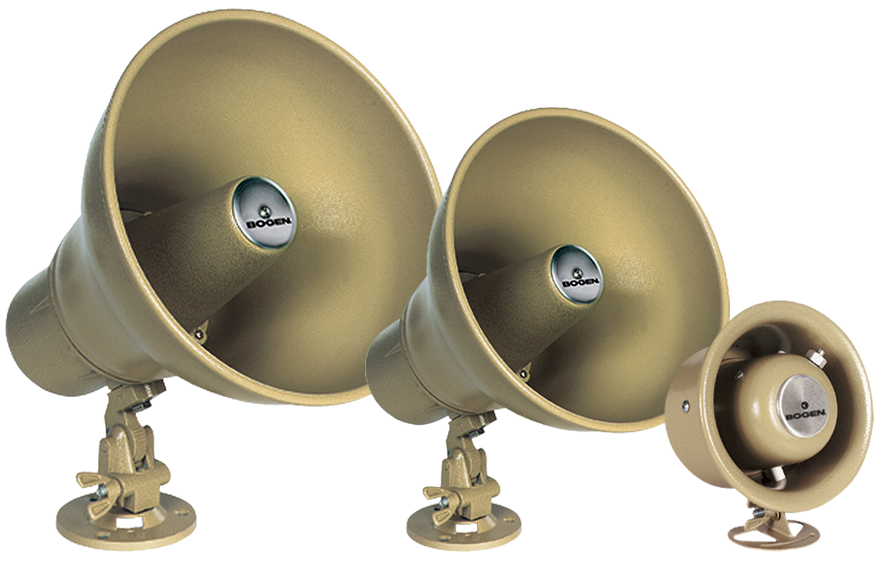

Models HS7EZ, HS15EZ, HS30EZ - Easy Design Horn Loudspeakers

Bogen’s Easy Design line of horn loudspeakers are compact, high intelligibility, re-entrant type loudspeakers designed for use with 70V amplifier systems. Their sturdy, weatherproof, all-metal construction is ideal for indoor and outdoor use in industrial plants, warehouses, schools, construction sites, transportation terminals, and recreational areas.

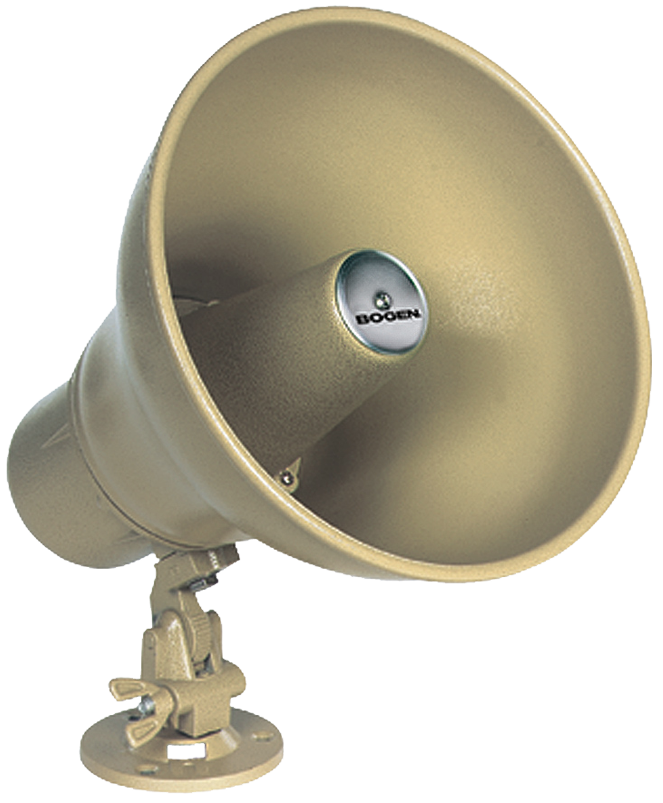

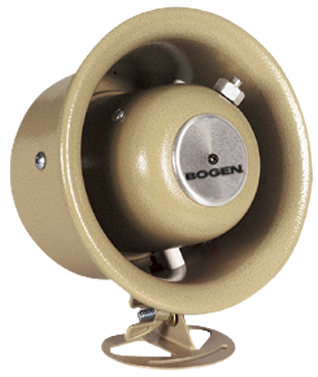

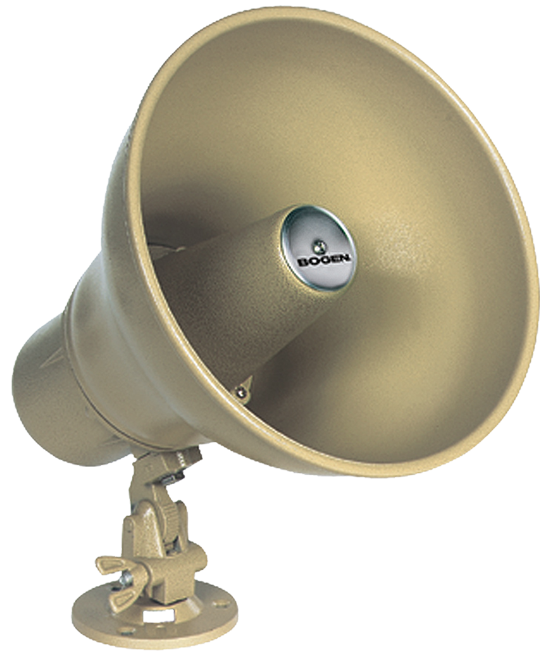

The HS7EZ is a 7.5-watt single-tap speaker; the HS15EZ, a 15-watt single-tap speaker; and the HS30EZ, a 30-watt single-tap speaker. All three models include a stepped attenuator volume control and come with a tilt and swivel mounting base for greater flexibility in setting the angle of projection.

The HS15EZ and HS30EZ are engineered to simplify installation (with a uniquely designed all-purpose mounting bracket) and field maintenance (with a self-aligning, field replaceable diaphragm), which save both time and money. Both the speakers and the mounting brackets are attractively finished in textured mocha enamel.

• Maximum speaker power capacities of 7.5W, 15W, & 30W
• Single-tap design
• Stepped attenuator volume control
• For 70V systems
• Tilt & swivel base for easy aiming
• All metal construction with enamel finish
• Weatherproof design
