Zone Paging System PCM2000

Model PCM2000 - Zone Paging System

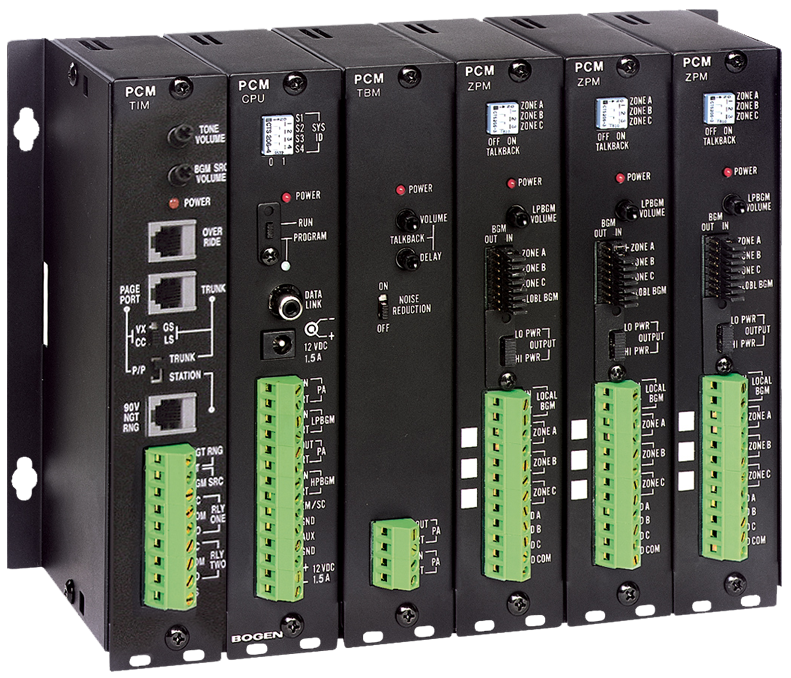

The Bogen PCM2000 is a modular telephone zone paging and control system. By integrating unique, multi-function modules, the PCM2000 offers both incredible flexibility and capability for future expansion. The Bogen PCM2000 Zone Paging System is designed for direct connection to loop start and ground start trunks, to PBX or KEY paging ports which supply DTMF capability, and to analog T/R lines. Operation requires a 12V (1.5A) DC power supply. The system allows total system amplifier power of up to 250W. The unit includes flanges with keyhole slots for wall mounted installation. The system is registered under Part 68 of FCC rules.

  • Simultaneous high- & low-power paging
  • Zone and zone group paging (32 paging zone groups, each with up to 99 zones)

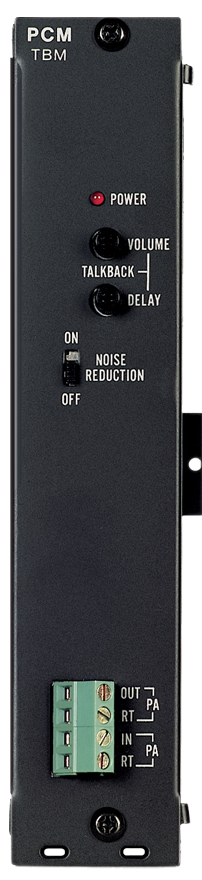

  • Talkback capabilities (requires PCMTBM module)
  • Background music assigned per zone
  • Local BGM sourcing capability
  • Night ringer zone group
  • Emergency zone group with choice of built-in tones or outside tone source
  • Emergency all-facility page override
  • Eight daily time-triggered signaling events (requires PCMTBM module)
  • Pattern & echo code calling
  • Daily master clock synchronization
  • Relay driver per zone
  • Auxiliary contacts
