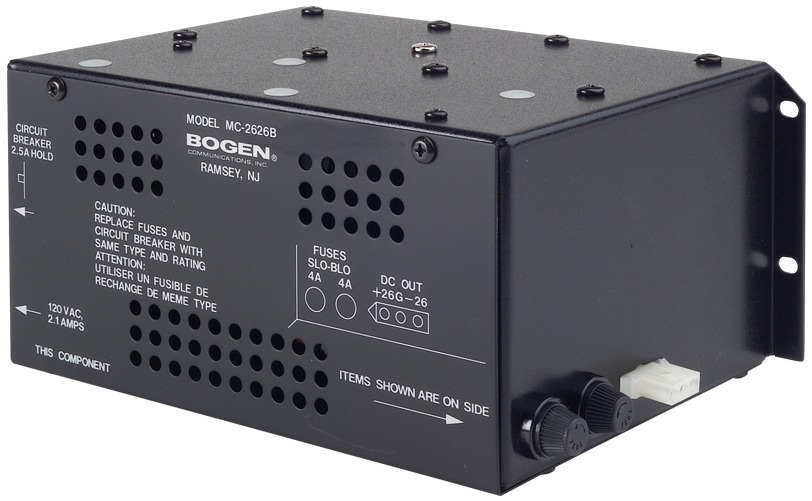

The Model MC2626B Power Supply is an unregulated, linear power supply providing nominal +26V and -26V @ 4.0A from 120V AC. Power consumption is 230W maximum.
The power supply is protected by two 4.0A fuses and one 2.5A circuit breaker, which are accessible from the outside of the chassis. One (1) 4-position, 0.156 centerline, polarized output connector is provided.
The unit includes an AC line cord.
- +26V @ 4.0A, -26V @ 4.0A
- Unregulated linear power supply
- Maximum power consumption is 230 watts
- Protected by two 4A fuses and one 2.5A circuit breaker, all externally accessible
- One 4-position, 0.156 centerline, polarized output connector
- One MC2626B required per system, two required if station capacity exceeds 120 stations
- Mounts to the MCRMP or MCMP
Dimensions: 8″ W x 5-1/2″ H x 4″ L
Weight: 9 lb.
Power: 120V AC
