Models MB8TSQ/MB8TSQVR, MB8TSL/MB8TSLVR Metal Box Speakers

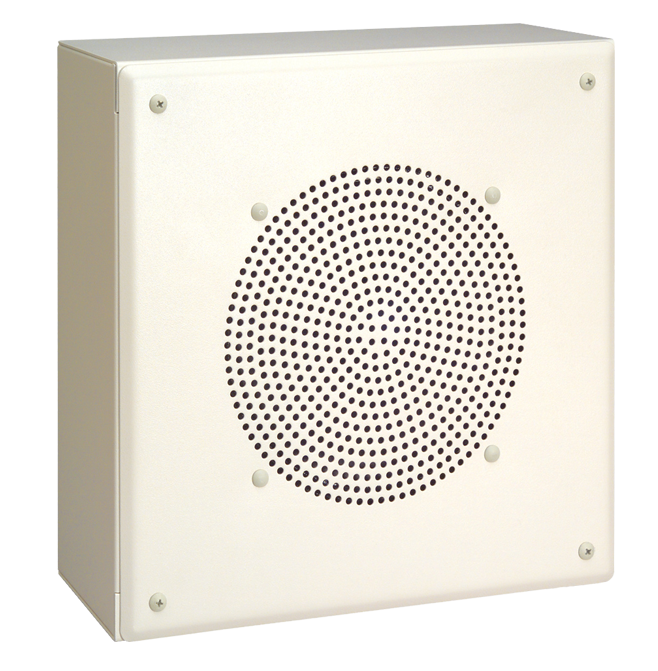

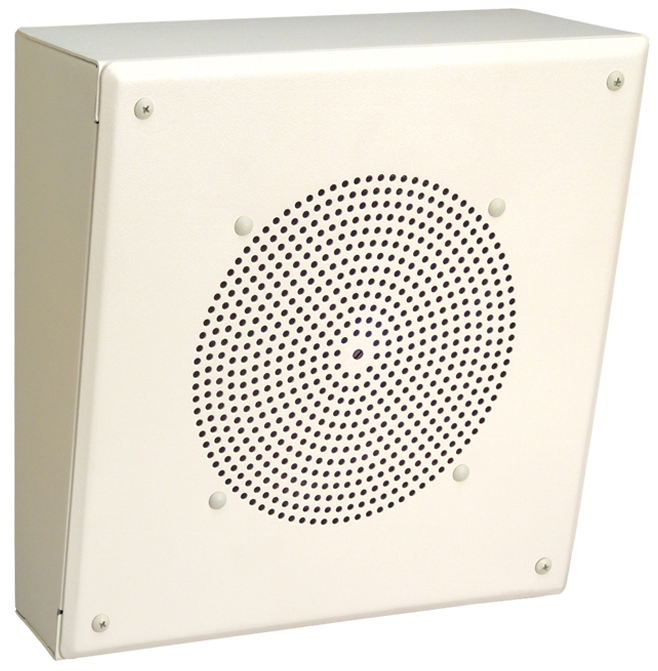

Bogen's MB8TSQ and MB8TSL speakers feature an all-steel surface-mounted enclosure with an 8" cone loudspeaker and multi-tap 4-watt 70V/25V transformer. The MB8TSQ speakers are suitable for ceiling or wall mounting. The MB8TSL speakers are designed primarily for wall mounting, with front face angled downward by 12.5 degrees. Models with "VR" suffix have a recessed volume control at the center of the grille.

  • Rugged all-steel surface-mounted enclosure; off-white finish
  • Full range 8" cone speaker for excellent intelligibility
  • Compatible with 25V or 70V amplifier systems
  • Multiple taps at 4W, 2W, 1W, 1/2W, 1/4W, & 1/8W

  • 4-watt maximum power output

  • Available as flat-fronted (MB8TSQ) or with 12.5° angled front (MB8TSL)
  • Rugged all-steel surface-mounted enclosure; off-white finish

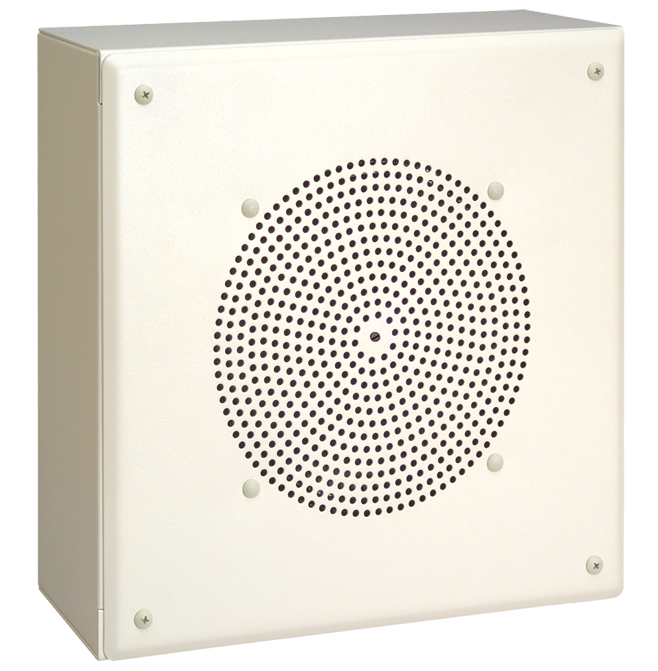

  • Models with "VR" suffix have a recessed volume control at the center of the grille
