Pre-Assembled Zone Paging System PCMSYS3

Model PCMSYS3 - Pre-Assembled Zone Paging System

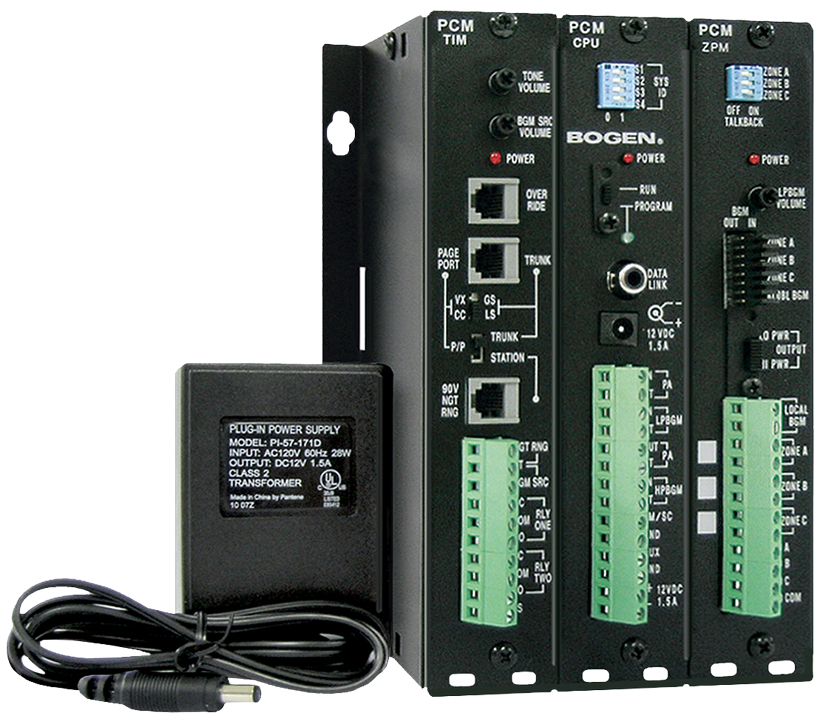

The PCMSYS3 is a pre-assembled and tested 3-zone PCM2000 system with a PCMPS2 power supply. Use it right out of the box for 1 to 3 zone applications or expand it with other PCM modules. The PCMSYS3 provides all the same great features found in the PCM2000 zone paging system. The system includes the PCMTIM Telephone Interface Module, PCMCPU Central Processor Module, PCMZPM 3-Zone Paging Module, and PCMPS2 System Power Module.



Paging

  • Provides 1 to 3 paging zones
  • Expandable up to 99 zones
  • Up to 32 programmable paging zone groups
  • Emergency All-Zone Override Paging input
  • Two-way Communications
  • 250W power handling capacity
  • Code Calling
  • Background Music distribution
  • Works with systems that are central- or self-amplified
  • Drives up to 40 self-amplified speakers per zone module
  • Night Ringer, 90V and contact closure
  • Real-time Clock & Master Clock Synchronization
  • Time-triggered Signaling Tone



Installation

  • Operates with 70V and self-amplified (24V) paging systems
  • Universal Telephone Interface allows simple connection to loop and ground start trunks, paging ports, and to analog 90V station lines
  • RJ11 jacks & terminal blocks
  • Relay driver outputs
  • Two C-form relay contacts
  • Setup tone
  • Program system features via DTMF
  • Wall-mountable
  • Rack-mount adapters (optional)
  • FCC Part 68 registered
  • UL60950 listed



Full Spec Sheets, User Manuals, Brochures
