Call-In Module SCR25A

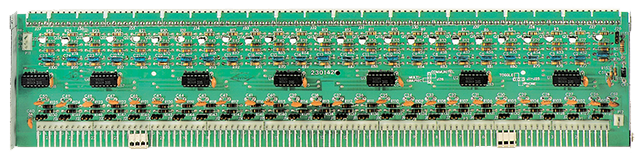

Model SCR25A - Call-In Module

The Bogen Model SCR25A Call-In Module is an annunciator latching control bank designed for use with room selector panels in Bogen Multi-Graphic® systems. The SCR25A provides 25 silicon controlled rectifiers (SCR) and permits the use of momentary switches without SCRs.The silicon controlled rectifiers provide annunciator latching, keeping the appropriate LED annunciator lamp on the room selector panel illuminated until the call is acknowledged.

  • Provides annunciator latching control
  • Simple plug-in method
  • 25 annunciator circuit capacity
  • Operating mode set with jumpers
  • Termination via centerline pins (use Bogen 25-Series Connector Kit)
  • Support brackets included
