NOTE: The MCACC has been replaced with the MCACD. The MCACD card offers the same functionality as the MCACC card. It has a different appearance yet will function seamlessly with any MCACC cards currently installed on your Multicom 2000 systems.

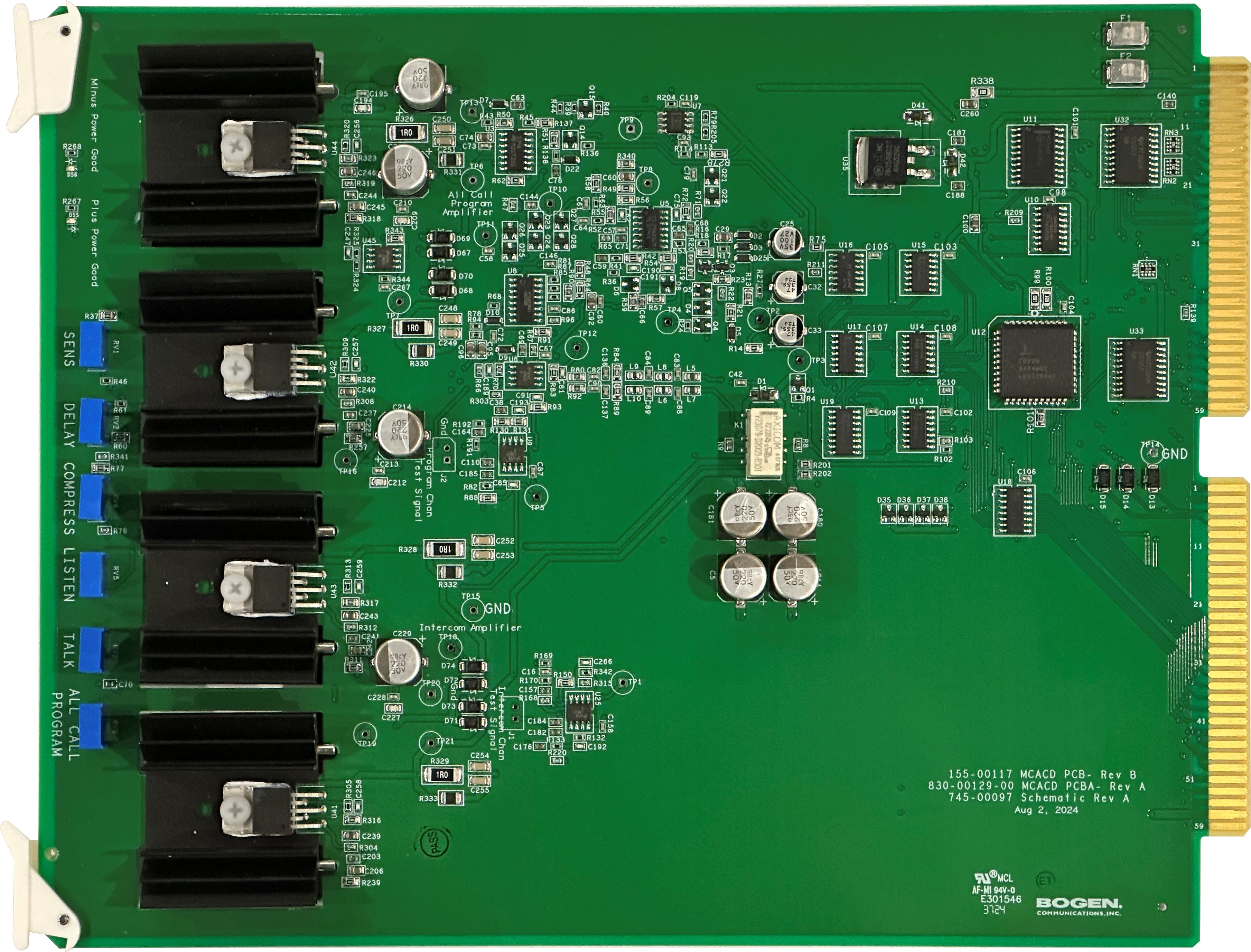

The MCACD Analog Card contains a 20-watt program amplifier and a 12-watt intercom amplifier. The program amplifier features low distortion (less than 1%), and a frequency response of +0, -1 dB from 100 Hz to 20 kHz. The intercom amplifier automatically controls the direction of speech VOX circuit without the use of relays. Decoding for the relay driver circuits on the associated MCRC relay card or MCRM relay module is handled by the MCACD.
- Provides amplification for one bank of 24 stations
- Requires an associated relay card or relay module and generally a station card
- Provides the signaling for relay control on the MCRM or MCRC
- Powered by the MC2626B power supply
- Two (2) front edge fuse status LEDs
- Privacy detection circuitry
- One (1) 20-watt program amplifier
- One (1) 12-watt intercom amplifier
Dimensions: 10-9/16″ W x 8-1/8″ H x 1″ D
Weight: 1 lb.
Power: MC2626B Power Supply (sold separately)
