Series Server BCTP7000

Model BCTP7000 - Series Server (V3.1)

The Bogen BCTP 7000 series master clock enables a user to have complete flexibility over their system. The BCTP 7000 comes standard with (S)NTP capability for synchronization to pre-programmed (S)NTP web servers. The clock has two pre-programmed relays that are dedicated for synchronous wired clock systems. The BCTP 7000 can be purchased with a built-in transmitter for sending out the signal wirelessly to Bogen wireless analog and digital clocks. A GPS can be added as a supplement to the already feature-rich clock for even more accurate timekeeping.

  • Includes all of the BCMA 2000 Series’ capabilities
  • Capable of acting as an NTP Server and providing NTP time to other IP devices in a facility
  • LED display for a clear, accurate readout and two buttons for programming

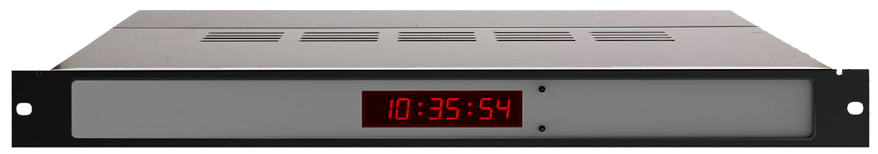

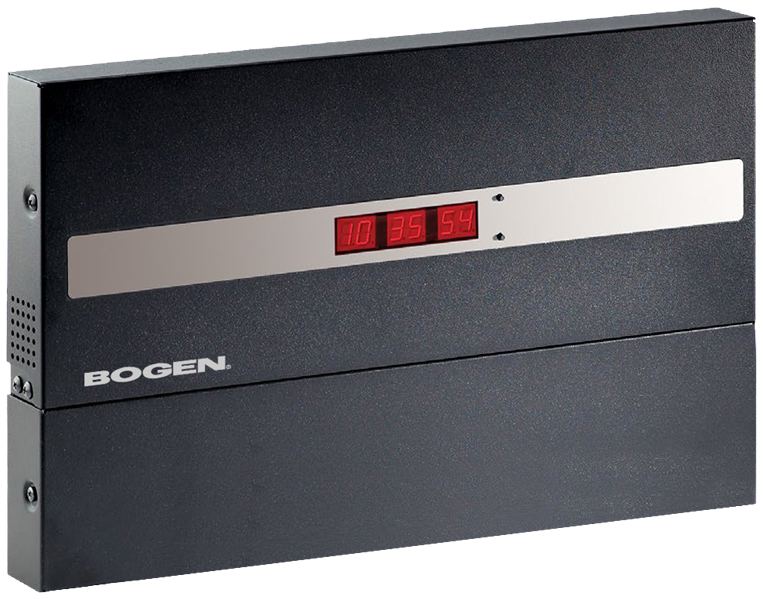

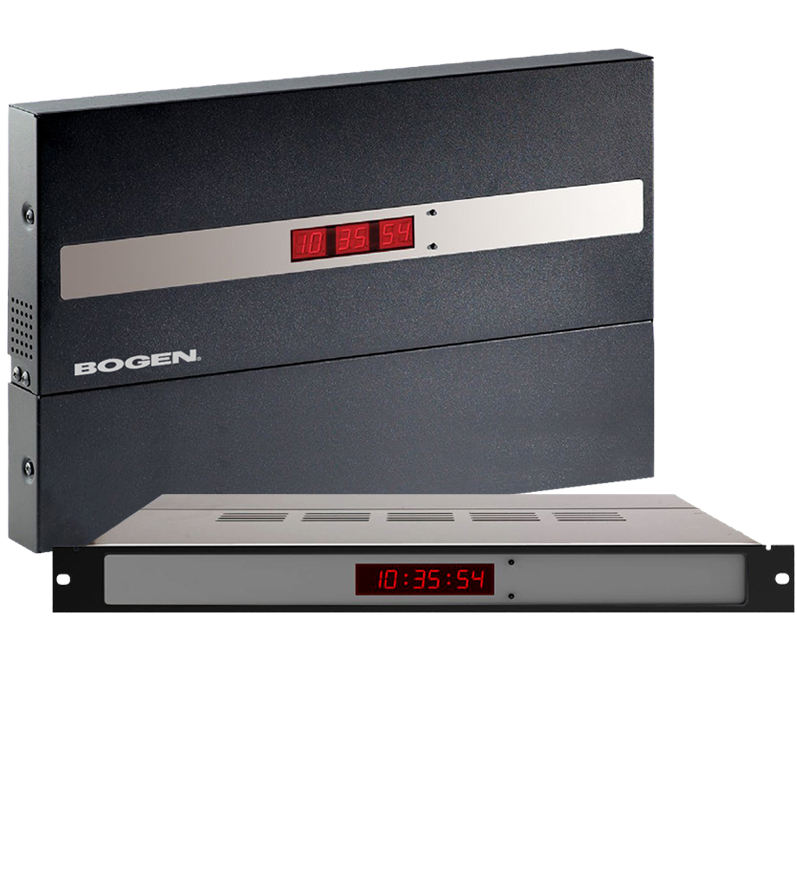

  • Available in Rack or Wall mount
  • Ability to store up to ten NTP server addresses for continuous accurate time and redundancy
  • Automatically switch from one accurate time source to another in case of a communication failure RJ45 input for web interface and synchronization to any (S)NTP server
  • 12 or 24 hour mode
  • Automatic bi–annual Daylight Saving Time updates (where observed) Bias seconds output
  • Adjust the time plus or minus a few seconds or minutes to fit your application, while still receiving an accurate time input
  • Proprietary RS485 digital communication protocol input and output for time synchronization
  • Two relays for simultaneous correction of two synchronized wired clock systems (Example: 59 or 58 minute protocol, National Time / Rauland, or Dukane protocol)
  • Blinking LED on the master clock’s front panel as a visual indicator to alert a communication failure with the time source has occurred
  • Microprocessor-based: Control wired clock systems or wired and wireless systems simultaneously, if equipped with a transmitter
  • Selectable UTC/GMT offset DHCP Capable
  • Ten year battery backup for keeping time and the settings of the master clock (keeps internal time only, cannot power display or synchronize the system)
  • Can command digital clocks to display “Fire” when the fire alarm system interfaces with the master clock (not applicable with an IP or sync- wire system)
  • Intuitive built-in web interface that allows the user to configure all of the settings of the BCMA series master clock from any computer on the same network
  • Master clock can be programmed to send email alerts when communication with accurate time source has failed, when the master clock has rebooted, and if the facility’s fire alarm has been activated (provided the fire alarm is connected to the master clock)
Full Spec Sheets, User Manuals, Brochures
