Easy Design Wall Baffle Speaker WB1EZ

Model WB1EZ - Easy Design Wall Baffle Speaker

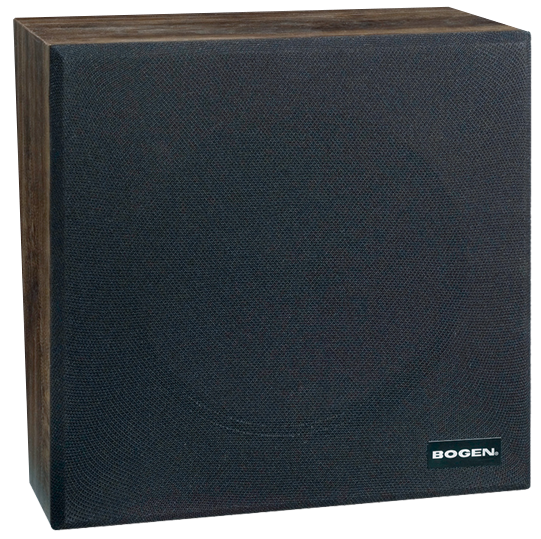

The Bogen WB1EZ Wall Baffle Speaker is an 8" cone speaker enclosed in a simulated walnut-finished wooden enclosure with a black grille cloth on front. The WB1EZ is a 1-watt single-tap speaker with recessed volume control designed for use in 70V amplifier systems. Designed for easy wall-mount installation, the WB1EZ comes pre-assembled.

  • Features screw terminal connections for fast wire lead connection
  • 1W single-tap design
  • Works with 70V amplifier outputs
  • High intelligibility and efficiency
  • Simulated walnut vinyl finish
  • Designed for easy wall-mount installation
  • 8" cone speaker
  • Wooden cabinet
  • Recessed volume control
  • Dimensions: 9-1 /2" W x 9-1 /2" H x 5-1 /4" D [top] (3-1 /4" D base)
