Easy Install, Self-Amplified Ceiling Speaker ASM1

Model ASM1 - Easy Install, Self-Amplified Ceiling Speake

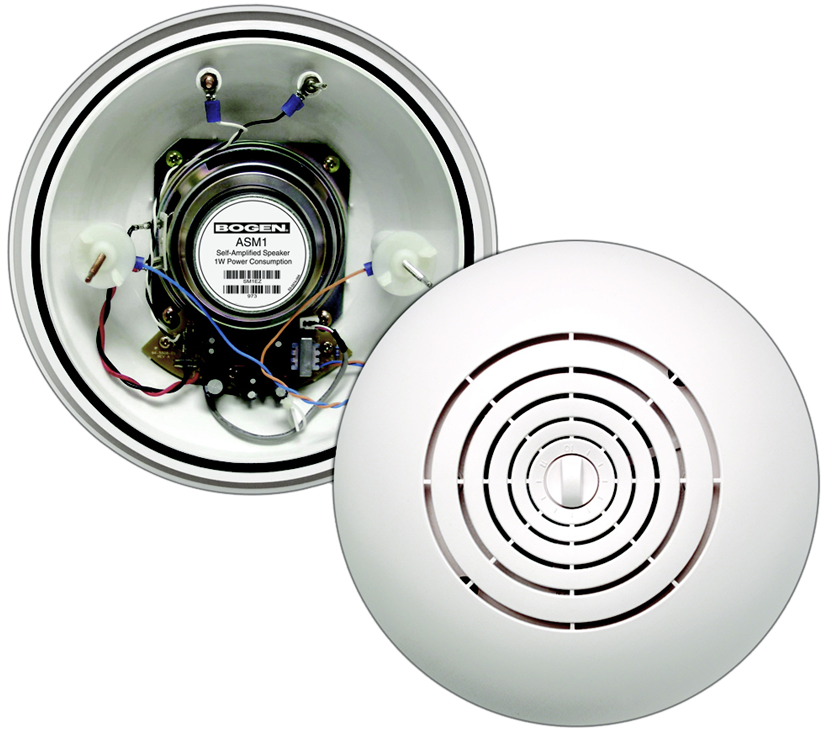

The Bogen ASM1 Easy Install® Self-Amplified Speaker is a surface-mount speaker, designed to typically install in less than a minute. Installation is a simple, three-step process that does not require tools. First, four specially-designed studs pierce the ceiling tile. Second, two custom-designed wing nuts secure the speaker to the ceiling. Third, standard wire nuts make the 24V DC power and audio connections directly to the color-coded studs. The ASM1 is lightweight, durable, and features a lowprofile contemporary design, making it versatile enough to be installed in just about any installation with standard ceiling tiles. The ASM1 is a 1-watt, self-amplified speaker with an exterior volume control for easy balancing that is easily accessible, but doesn’t attract tampering

  • Installs in less than a minute
  • Self-contained 1W amplifier
  • High intelligibility and sensitivity
  • Wide-range frequency response
  • Direct and reflected sound paths create wide dispersion angle
  • Lightweight and durable plastic shell with an off-white, paintable finish
  • Simple, three-step installation process
  • No tool(s) installation
  • Color-coded mounting studs identify polarity to make the power and audio connections easier (no external wires)
  • Front-mounted volume control for easy access
  • Transformer-isolated, balanced audio input
  • Can be installed in any drop ceiling with standard ceiling tiles
  • Surface-mounting design eliminates need to cut ceiling tile, no mess installation
  • Contemporary design blends/matches any decor
  • O-ring seal holds speaker tight to ceiling surface, eliminating whistling and ensures smoother sound without peaks
  • Textured studs easily pierce ceiling tile and secure wire nut connections
  • Wide-bottom, easy-to-handle mounting wing nuts provide secure speaker mounting
  • All necessary mounting hardware included
  • Tile Bridge available for weight distribution (model SMTB, sold separately)
  • Complies with NFPA National Code 160b and UL-2043 (Report available)
