Easy Design Ceiling Speaker CS1EZ

Model CS1EZ - Easy Design Ceiling Speaker

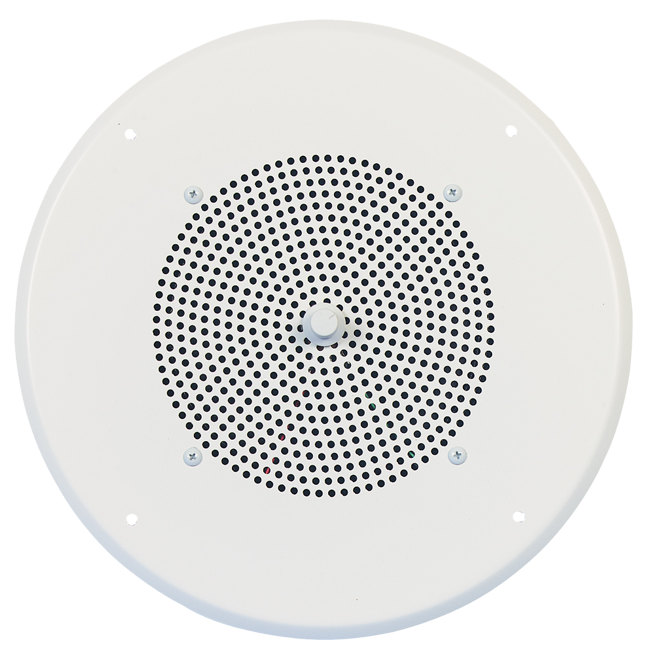

The Bogen CS1EZ is a pre-assembled 1-watt single-tap ceiling speaker designed for use with 70V amplifier systems. Comprised of an 8" cone speaker and 13" diameter steel ceiling grille finished with white enamel, the CS1EZ includes a rear-mounted screw terminal board for fast, easy installation. An accessible volume control knob is located on the faceplate.

  • 1-watt, single-tap design
  • Screw terminal connections for fast installation
  • Designed for 70V amplifier output
  • 8” cone speaker for excellent audio quality
  • Heavy-duty, wire-wound volume control with knob
  • 50 Hz-12 kHz frequency response
  • 95 dBspl @ 4 ft. /1W input sensitivity
  • Off-White finish
Full Spec Sheets, User Manuals, Brochures
