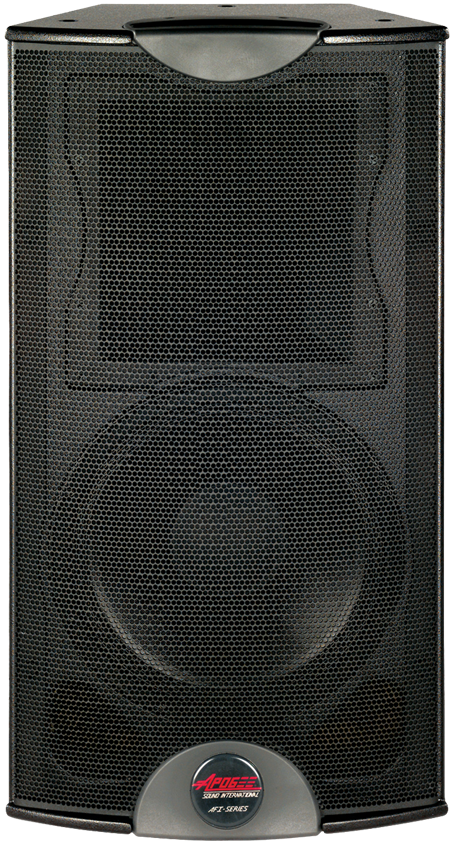

APOGEE Fixed Installation Loudspeaker AFI-4

Product Color Availability
Model AFI-4 - Contractor Series Loudspeaker


*Please Note: These speakers are custom built to order. Once the order is placed this item is not cancellable or returnable and has a 4-6 week lead time.*

The AFI-4 is a fully arrayable loudspeaker versatile enough for clubs, discos, churches, theaters, and theme parks. Much of this versatility comes from the available options that include a 60° x 45° or 90° x 45° horn as well as bi-amplification capabilities. These horns, as well as their logo plate, are rotatable to allow alternative hanging positions.

  • Driver Complement: Low-Frequency: One Apogee 12" (305mm) neodymium magnet cone-type driver is treated with a waterproofing compound, providing resistance to moisture, and enabling long-term stability of cone resonance and cone mass parameters; also treated with Ferrofluid® for greater power handling capability, lower distortion, and control of short-term impedance rise
    High-Frequency: One Apogee 1.75" (45mm) voice coil, 1" (25mm) exit horn-loaded compression driver treated with Ferrofluid
  • Input Connectors: Barrier strip, screw type #8
  • Compatible Processors: AFI Main Frame Controller Chassis (using either AFI-4/-4B/-4W/- 4WB Modules) or DLC24
  • Recommended Crossover (AFI-4B only): Contact Apogee for full technical data on other DSP-based Processors
  • Handles: Two handles – one top, one bottom – designed as an integral part of the enclosure (no moving parts)
  • Grille: Highly durable, quality finish on perforated steel (aluminum on SX version)
  • Rigging Hardware: Fourteen rigging points, four each on top and bottom, two each on both sides and rear, all backed with 16-gauge steel; points can be type 3/8"-16 or M10 thread
  • Finish: Textured high-strength black or white epoxy paint; other colors optional
  • Enclosure Type: 30° trapezoidal, optimally-vented bass
  • Cabinet Construction: Multi-ply hardwood
  • Options/Accessories: AFI Controller Processor or DLC24 Digital Processor; SX weather treatment for use in limited exposure enclosures; assorted rigging components
