24V DC/6.6A Power Supply SPS2466

Model SPS2466 - 24V DC/6.6A Power Supply

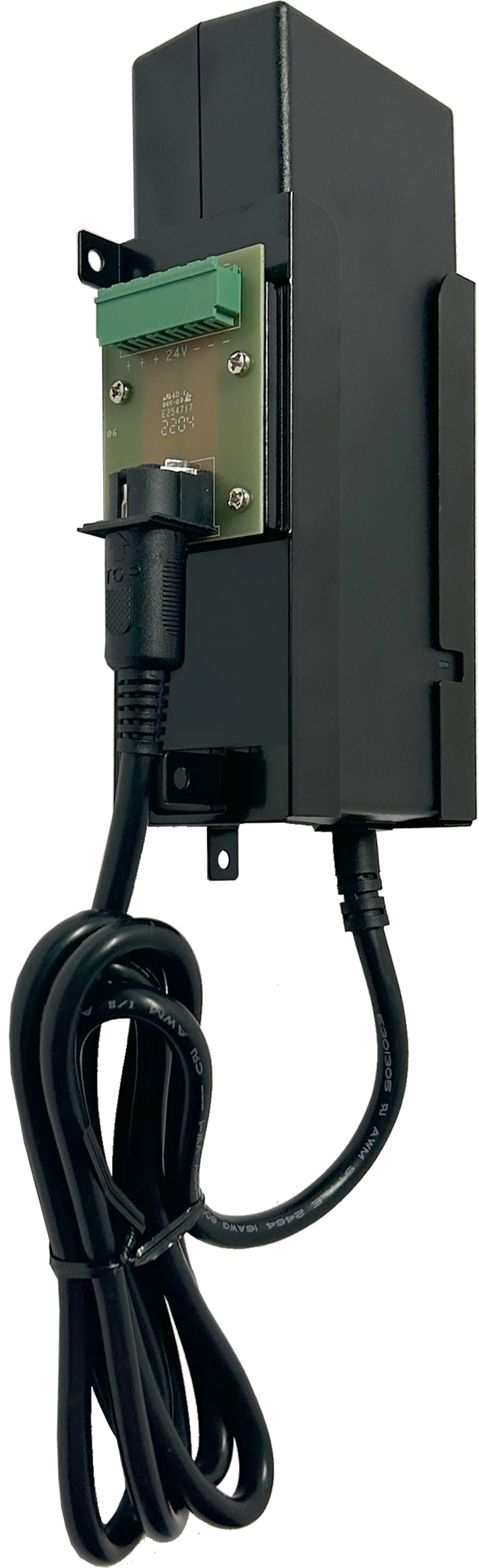

The Bogen Model SPS2466 power supply provides regulated 24V DC at 6.6A (132 CU) from a 120V AC, 60 Hz source. The SPS2466 employs a switching technology that results in large current capacities while generating minimal heat. The power supply includes a power LED. It is wall mountable using a holster with pluggable terminal strip. The unit's dimensions are 2-7/8" W x 6-3/4" H x 1-5/8" D and it weighs 2 lb. The power supply is both UL and C-UL listed.
