24V DC/2.5A Power Supply SPS2425

Model SPS2425 - 24V DC/2.5A Power Supply

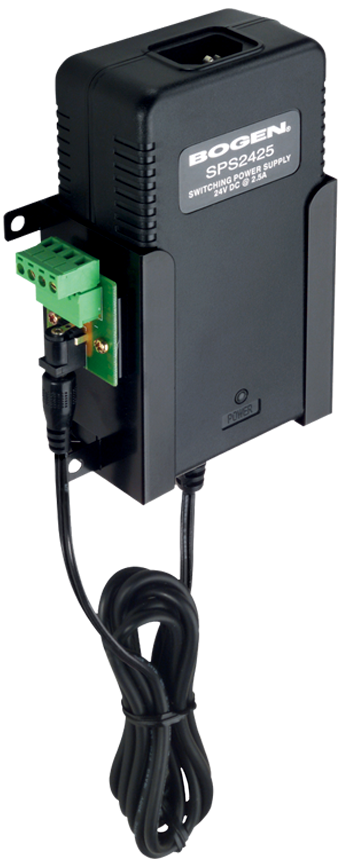

The Bogen Model SPS2425 power supply provides regulated 24V DC at 2.5A (50 CU) from a 120V AC, 60 Hz source. The SPS2425 employs switching technology that results in large current capacities while generating minimal heat. The unit is wall mountable using a holster with pluggable terminal strip. The unit weighs 2 lb, and its dimensions are 3" W x 5-3/4" H x 1-3/4" D. The power supply is both UL and C-UL listed.

Full Spec Sheets, User Manuals, Brochures
