Relay Input/Output Module RIO1S

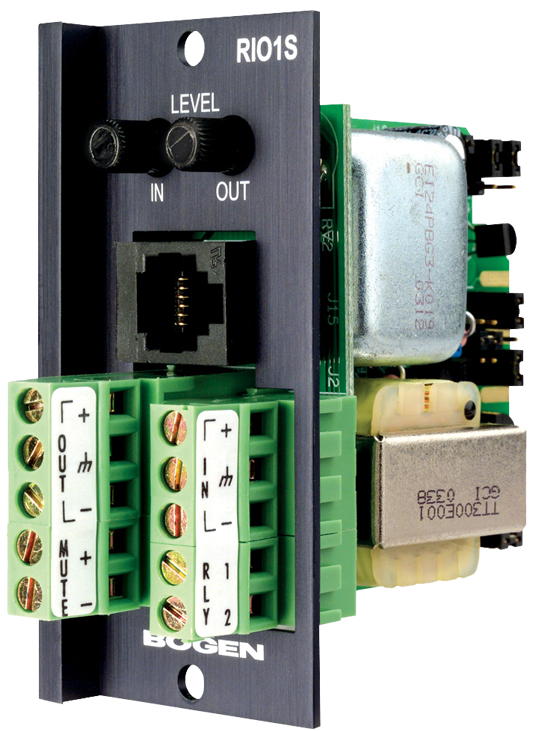

Model RIO1S - Relay Input/Output Module

Bogen’s RIO1S is a multi-functional module with a priority-controlled relay contact, transformer-balanced input, transformer-balanced output, and an RJ11 output for direct connection to the override input of a zone paging system. The RIO1S provides a convenient way to integrate a Power Vector amplifier with a PCM zone paging system, allowing full use of the Power Vector’s priority structure in zone paging applications for more sophisticated paging capabilities.

  • Transformer-isolated, balanced line-level input
  • 600-ohm or 10k-ohm (jumper-selectable) input impedance
  • Transformer-isolated, balanced line-level output
  • 8-ohm, 0.75W output
  • Input and output level controls
  • Relay responds to jumper selectable priority level
  • N.O. or N.C. jumper-selectable relay contact
  • External control of priority muting buses
  • Input can be muted from higher priority modules, with signal fade back
  • Output (normally gate) can be synched with priority relay operation
  • Output gating can be defeated via jumper
  • RJ11 connection with line output and dedicated N.O. relay contact
    (allows easy connection to O/R port of Bogen telephone paging interfaces)
