TPU Series Mixer-Amplifiers

Models TPU15A, TPU35B, TPU60B, TPU100B, TPU250, TPU600-G2



NEW TPU600-G2 now available!

The Bogen TPU Series Mixer-Amplifiers are unique, wall- or rack-mounted amplifiers, specifically designed for telephone paging applications. These compact units provide voice-activated muting of music when paging, completely eliminating the need for manual activation of switches and the use of external relays. The page channel features automatic output leveling (ALC) as channel input varies, which is particularly important in telephone paging applications, where persons with varying voice levels and paging techniques have access to the system. Installation and maintenance are simple; all connections, adjustments, and mounting are accomplished with a screwdriver.

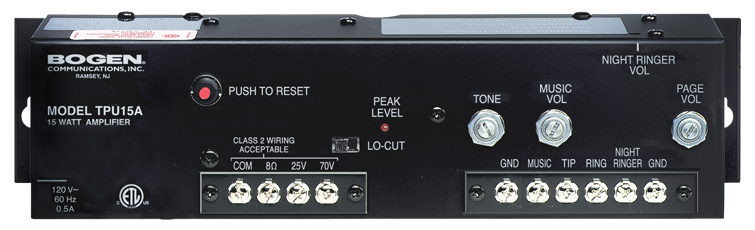

TPU15A Features:

  • Compact wall-mount design
  • Inputs for 600-ohm balanced telephone line and background music
  • 25V, 70V, or 8-ohm output
  • Built-in night ringer triggered by external contact closure
  • Integral automatic level control (ALC) circuit
  • Signal-activated music muting circuit
  • Individual controls for tone, page volume, background music volume, night ringer volume
  • Lo-cut switch
  • LED overload indicator
  • Circuit breaker
  • Black finish
  • Listed to UL Standard 60065 for U.S. & Canada

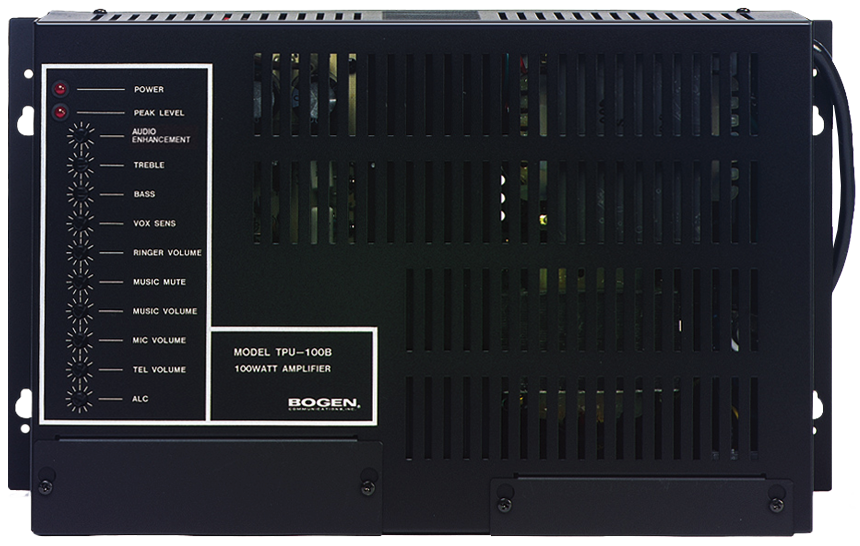

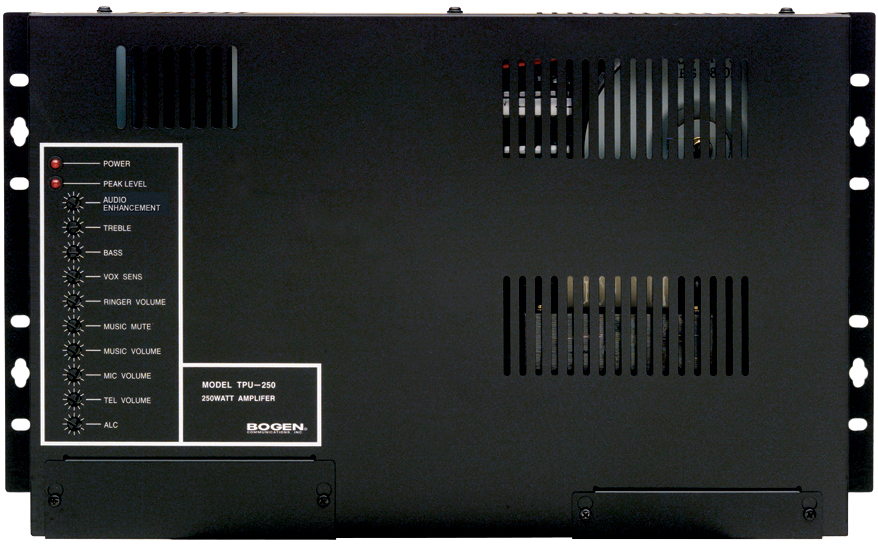

TPU35B, TPU60B, TPU100B, TPU250 Features:

  • 35, 60, 100, and 250-watt models
  • Balanced or unbalanced 16-ohm, 25V, 25V CT, and 70V outputs are available for the TPU35B/60B/100B models; 25V and 70V outputs are available on the TPU250
  • Inputs for 600-ohm balanced telephone line, Lo-Z balanced microphone, and background music
  • Music input (RCA jack or screw terminals)
  • Page from telephone and/or microphone
  • Signal-activated paging channel automatically mutes background music
  • Listed to UL Standard 60065 for U.S. & Canada

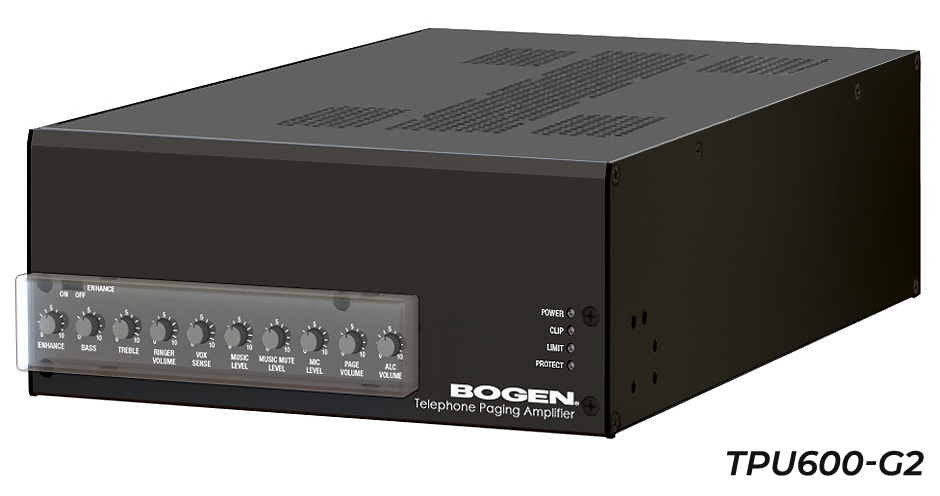

TPU600-G2 Features:

  • 600-watt
  • Audio enhancement circuit increases intelligibility, improves perceived loudness (with no increase in power), and reduces listener fatigue
  • Separate controls for page volume, music volume, night ringer, music mute, and Audio Enhancement
  • Balanced line output, and 8-ohm, 25V, or 70V outputs available
  • Thermal and electronic overload protection
  • Pluggable screw terminals provided for all inputs and outputs
  • Clip level LED indicates when the amplifier is driven into signal clipping
  • Protect LED indicates when the amplifier has entered protect mode due to overload
  • Limiter LED indicates when the amplifier is limiting the output to prevent square wave signal output when overdriven
  • Transparent Security Cover is included to prevent tampering with front panel settings
  • 100V AC - 240V AC 50/60 Hz
  • Listed to UL EN62368-1:2014 for U.S. & Canada
